CSi-2000-LAT Dell Latitude 12 Rugged Tablet

PDFPrintEmail

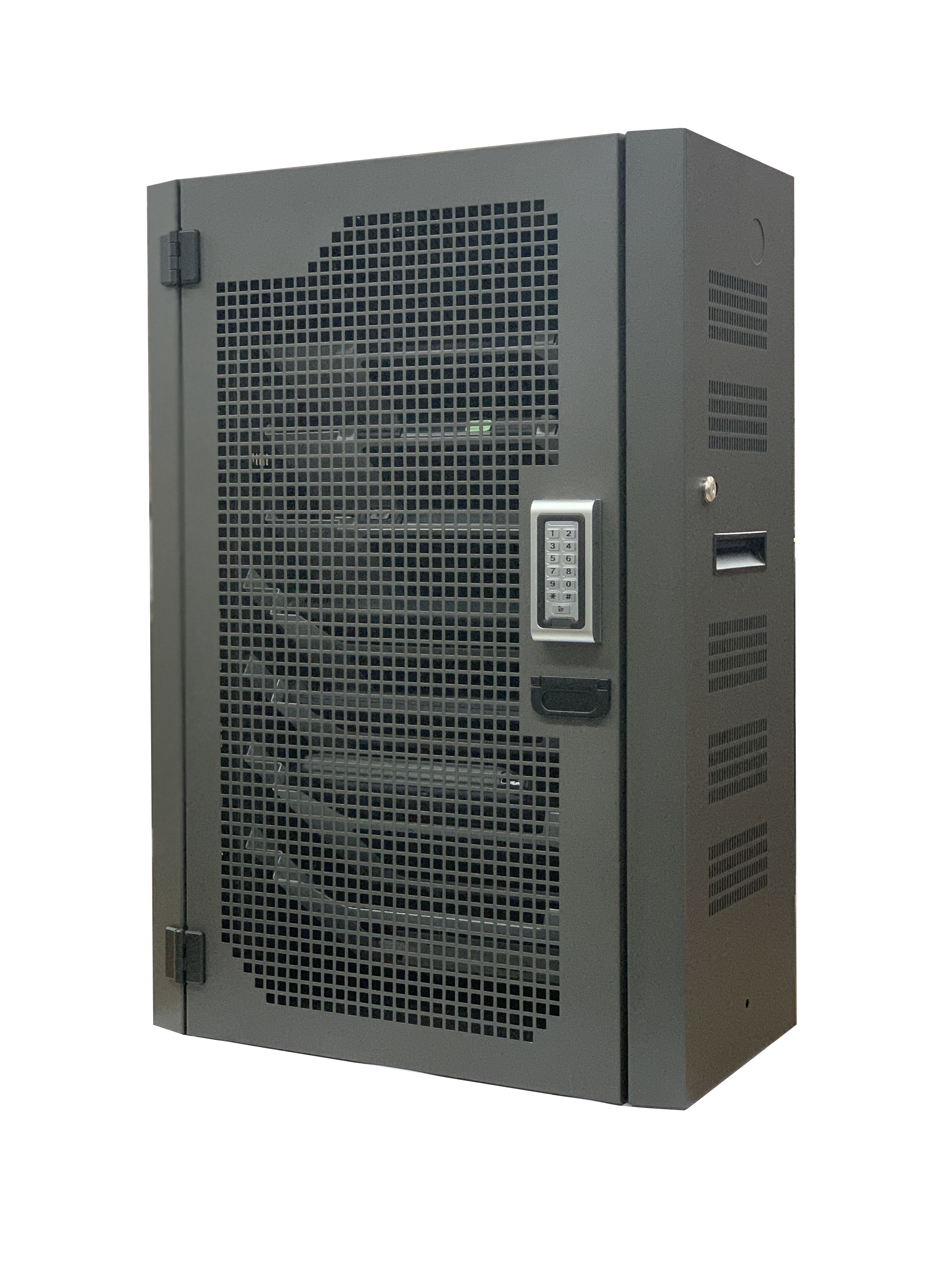

CSI-2000-LAT HS Grab & Go Charge and Networked wired Security Cabinet designed for 7 Dell Latitude 12 Rugged Tablets with Handlebar. Dimensions 21.8" W 12.7" D x 32" H. Leveling Feet, table-wall mounting brackets included.
Front Finished Keypad
Prox Card Cabinet2
ZH-1000 Bottom Power Entry and Network Connector
ZH-1000 EDocks with F110 Inserted
ZH-1000 Back with 1 Wall Mouint Bracket
Zh-1000 Door Hinge
ZH-1000 Left Angle5
Keypad
Switch Compartment
Zh-1000 Fan Top1
Description





CSi-2000-LAT-HS Tablet Cabinet
For Dell Latitude 12 Fully Rugged Tablets with handlebar


Description
The CSi-2000-LAT-HS Grab and Go cabinet is designed specifically for up to 7 Dell Latitude 12
ruggedized tablets. The grab-and-go style cabinet allows the user to
take-out and return tablets without having to worry about plugging them
in. Tablets are connected to the cabinet through the proprietary Pogo
connector allowing A/C power and network access. To ensure the
devices are charged and up to date with software patches the cabinet
can accommodate an optional 8 port Cisco switch. This small form factor
cabinet is ideal for areas with limited space and can be attached to a wall
using the supplied mounting bracket.


Features
- Supports up to 7 Dell Latitude 12 Fully Rugged Tablets with Handlebar
- Grab-and-Go design makes removal and return fast and easy
- Proprietary Pogo connector eliminates cable mess and connection failure
- Power and Network (Cat 6 Wiring) provided to each slot/ dock
- Top lockable compartment can accommodate a Cisco 8 port switch
- Hinged door with keypad entry

- Thermostatically controlled fans in top lid

Cabinet Specifications
Cabinet is designed to only be used with Dell Latitude 12 Fully Rugged
Tablets
- Model Number: ZCSI-LAT-HS
- Cabinet Dimensions: 32"H x 31.8"W x 12.7"D
- Cabinet Weight (Empty): 75 lbs
- Cabinet Max Weight: 120 lbs
- Operating Temperature: 10 - 32+ degrees Celsius
- Wall Mount: Wall Mounting Brackets Supplied
Cabinet Power Specifications
Cabinet Power Supply is UL Approved
- Voltage: llOVAC or 220VAC
- Current: 12 amps
- Circuit Breaker: 15A (max)
- Frequency: 47-63 Hz
- Overload Protection: Automatic Shutdown and Restart
- Overheat Protection: Automatic Shutdown and Restart
Docking Slot Specifications
- Docking Station Connector: Proprietary Pogo 24-pin Connector
- Power: 19v DC
- Network: 10/100/1000 base-T Ethernet
Fan System Specifications
- Fan Size: Dual 120mm x 120mm
- Airflow: 108 CFM I 126 m3/h (@ 1,350 RPM)
- Noise Level: 0.3 Sone (@ 1,350 RPM)
- Thermostat: Activated by temperature controller when above 86 Deg F. Foam replaceable debris filters available for each fam
