ZH-1000L for Dell Latitude 12 Rugged Tablet

CSI – ZH-1000LAT12 Grab & Go Charge and Networked wired Security Cabinet designed for 8 Dell Latitude 12 Rugged Tablets. Dimensions 18.65" W 11.19" D x 32" H. Wall mounting brackets included.
Front Finished Keypad
Prox Card Cabinet2
ZH-1000 Bottom Power Entry and Network Connector
Zh-1000 Door Hinge
ZH-1000 Left Angle5
Switch Compartment
Zh-1000 Fan Top1



ZH-1000LAT12 Tablet Cabinet
For Dell Latitude 12 Fully Rugged Tablets

The ZH-1000LAT12 Grab and Go cabinet is designed specifically for up to 8 Dell Latitude 12
ruggedized tablets. The grab-and-go style cabinet allows the user to
take-out and return tablets without having to worry about plugging them
in. Tablets are connected to the cabinet through the proprietary Pogo
connector allowing A/C power and network access. To ensure the
devices are charged and up to date with software patches the cabinet
can accommodate an optional 8 port Cisco switch. This small form factor
cabinet is ideal for areas with limited space and can be attached to a wall
using the supplied mounting bracket.

- Supports up to 8 Dell Latitude 12 Fully Rugged Tablets
- Grab-and-Go design makes removal and return fast and easy
- Proprietary Pogo connector eliminates cable mess and connection failure
- Power and Network (Cat 6 Wiring) provided to each slot/ dock
- Top compartment can accommodate a Cisco 8 port switch
- Hinged door with single keyed lock
- Thermostatically controlled fans in top lid

Cabinet Specifications
Cabinet is designed to only be used with Dell Latitude 12 Fully Rugged
- Model Number: ZH-1000LAT12
- Cabinet Dimensions: 32"H x l 8.65"W x 12.2"D
- Cabinet Weight (Empty): 75 lbs
- Cabinet Max Weight: 120 lbs
- Operating Temperature: 10 - 32+ degrees Celsius
- Wall Mount: Wall Mounting Brackets Supplied
Cabinet Power Specifications
Cabinet Power Supply is UL Approved
- Voltage: llOVAC or 220VAC
- Current: 12 amps
- Circuit Breaker: 15A (max)
- Frequency: 47-63 Hz
- Overload Protection: Automatic Shutdown and Restart
- Overheat Protection: Automatic Shutdown and Restart
Docking Slot Specifications
- Docking Station Connector: Proprietary Pogo 24-pin Connector
- Power: 19v DC
- Network: 10/100/1000 base-T Ethernet
Fan System Specifications
- Fan Size: 120mm x 120mm
- Airflow: 74 CFM I 126 m3/h (@ 1,350 RPM)
- Noise Level: 0.3 Sone (@ 1,350 RPM)
- Thermostat: 90 Degrees F - 100 Degrees F
RPM Curve: 400 RPM until 90°F, Up to 1,350 RPM @ lOO°F

Where to Buy Charge Solutions Inc. Products in the United States

Contact Charge Solutions Inc. direct to obtain pricing, GSA Pricing Availble.

Charge Solutions Inc.

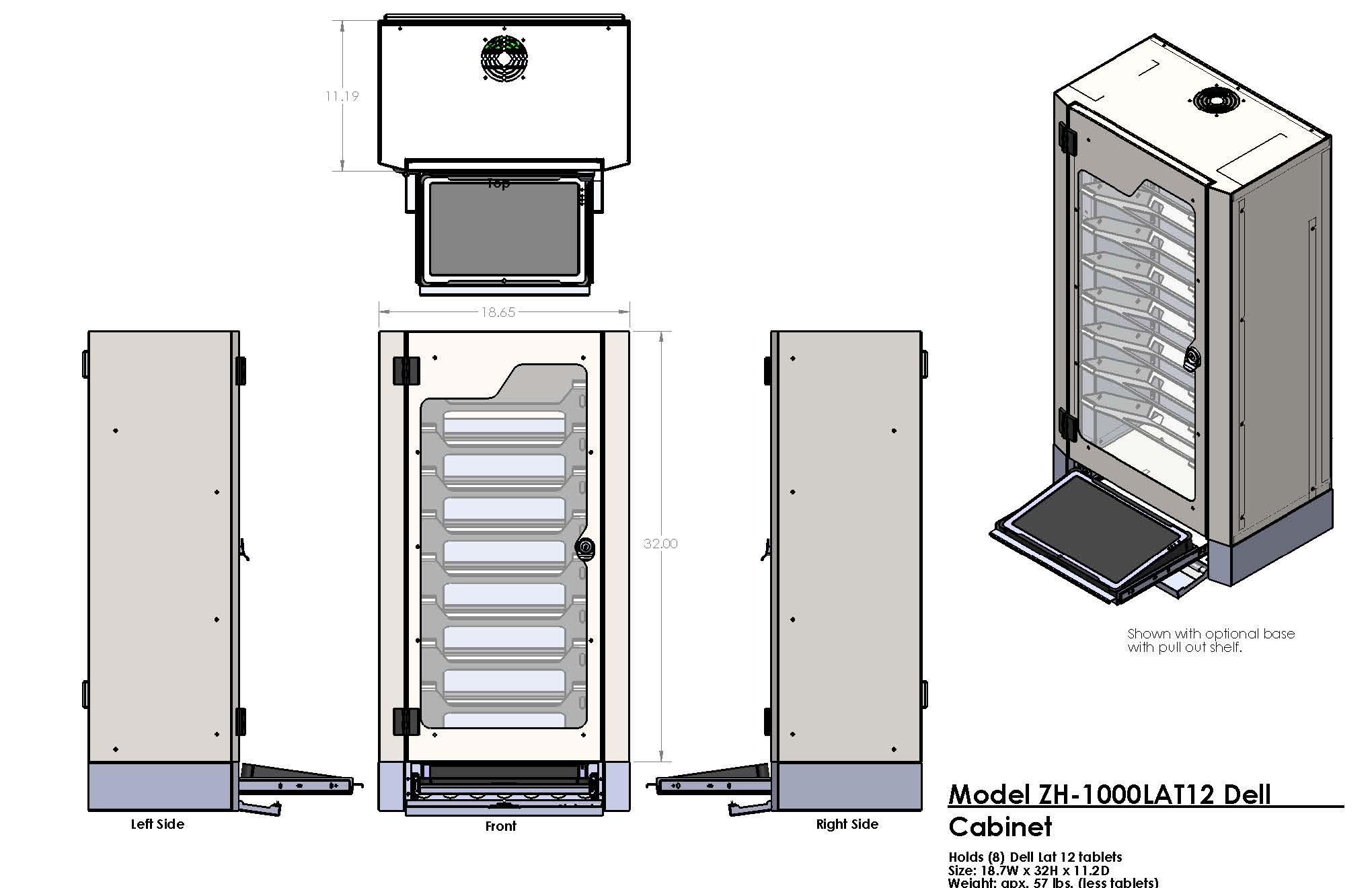

  Model ZH1000LAT12
5 year warranty
